PACIFIC BICYCLES: FAILURE OF
POSITRACK 7000 SUSPENSION FORK --
ADDITIONAL PHOTOS

2000, John S. Allen

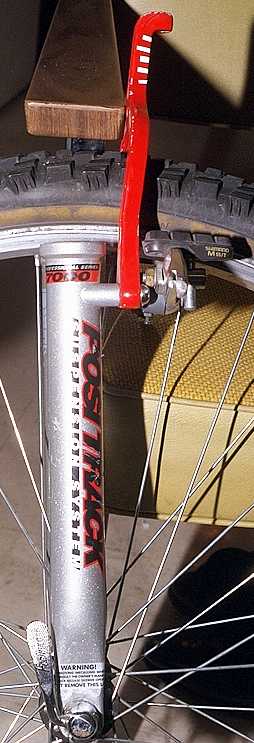

Right: Slider and front wheel assembly which came off.

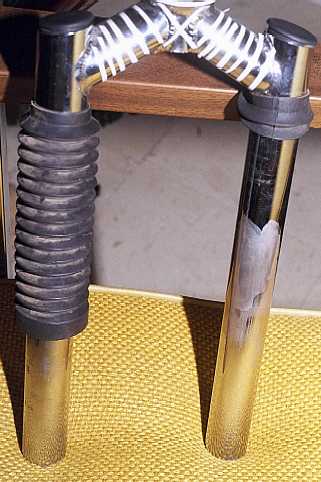

Below: stanchions with end plugs in place. Dull appearance is due to flaking of chrome plating.


Fork slider assembly that came off, causing crash (33776 bytes)

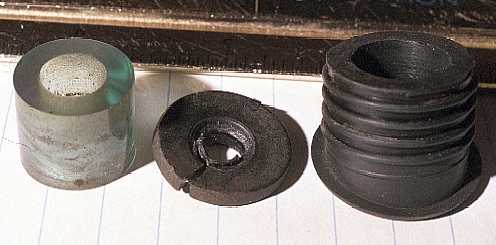

Components from inside left stanchion:
elastomer donut, failed top-out washer, end plug. Note
wear and sheared appearance of washer hole.

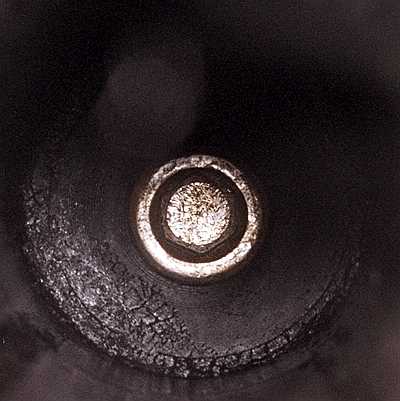

Close-up view of bolt head inside slider,
showing Allen-head fitting.



Panel from May 2000 Toys 'R' Us flyer
promoting Pacific bicycles with suspension forks
that may have the same problem

Larger scan of this image
